SC-CC2-CCT5-50W

https://www.lumencache.com/web/image/product.template/2181/image_1920?unique=b9adb28

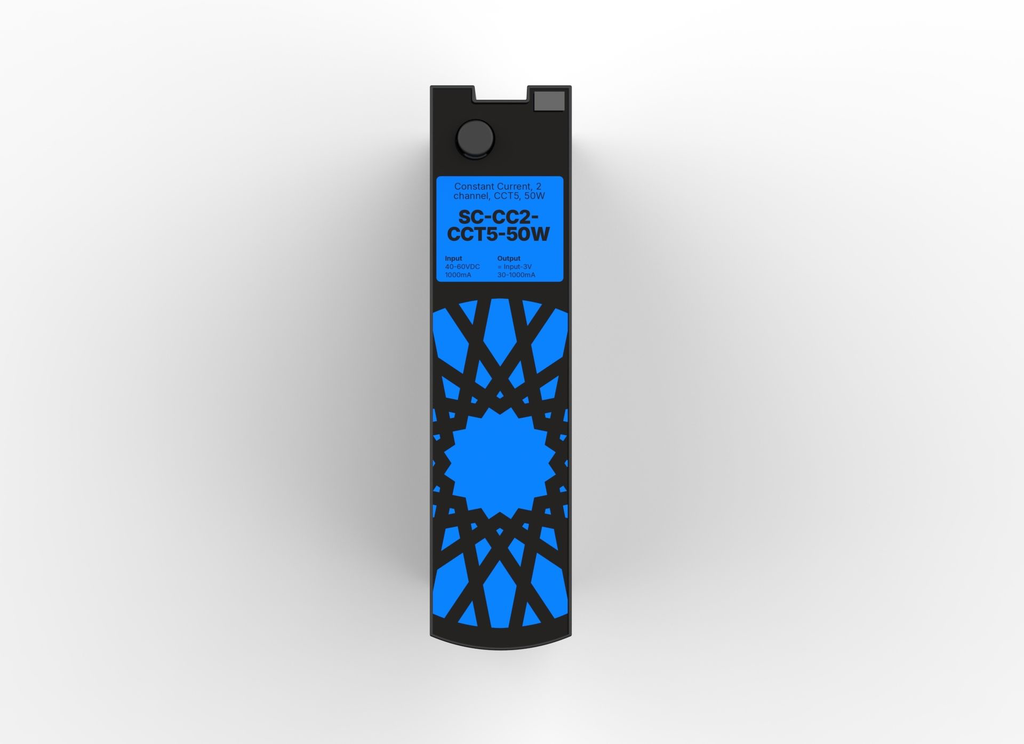

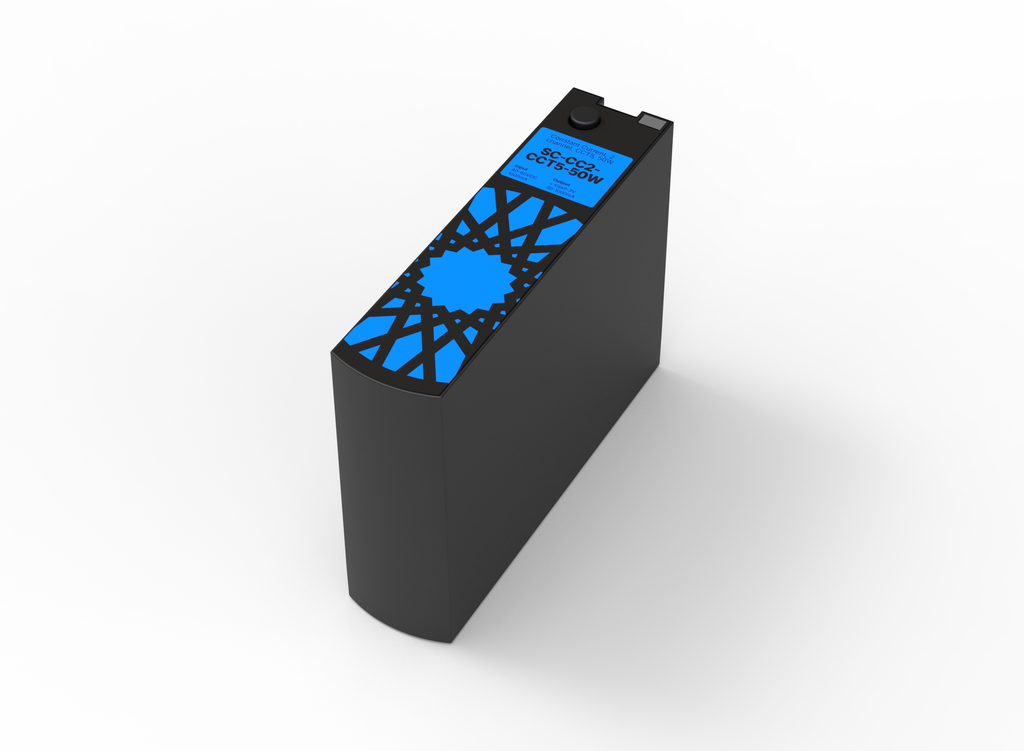

Socket Card for Constant Current lights, 2 channels, CCT5 switch, 50W
300-90029-302

$ 35.98 35.98 USD $ 35.98 Tax Excluded

$ 35.98 Tax Excluded

Not Available For Sale

    This combination does not exist.

    J1C(485.1): CC 1ch J2C+(485.1): CC 2ch Common Anode(+) J: RJ45 ReNetA Socket ReNetA Base
    Contact Us


    Socket Cards (SCs) deliver power and communication data from the PDM to the Smart Interface Blocks (SIBs) and fixtures down the line. Socket Cards are hot-pluggable safe and pop easily into the PDM with no tools required.

    Constant Current (CC) Socket Cards are the drivers for "bare LED" fixtures that do not have power regulators (resistors or current-limiting ICs) built in them. Most downlights are CC type.

    The SC-CC2 features 2 channel control for white tuning.

    SC-CC2-CCT5 is the “basic” version of the SC-CC2. Instead of allowing for color temperature adjustment at the Switch or PowerPlane, the color tuning is controlled by a 5-step linear switch at the bottom of the Socket Card itself.

    For more information about the SC-CC2-CCT5, refer to our Product Knowledge Base:
